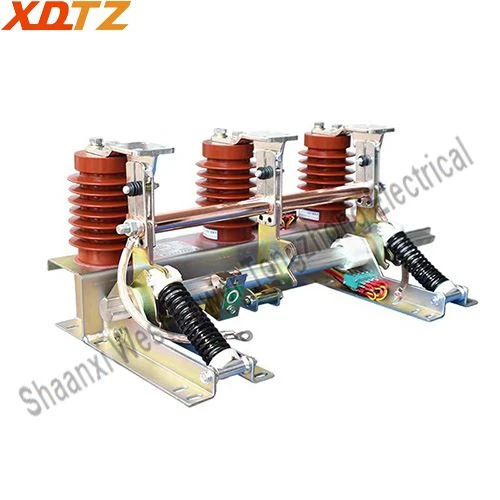

JN15-12 indoor grounding switch is an advanced product developed based on the latest technologies in grounding switches both domestically and internationally. After comprehensive testing, its performance complies with the standards of GB/T1985 ("AC High-Voltage Disconnectors and Earthing Switches") and IEC 129, making it suitable for AC power systems of 12kV and below. It can be used with various standard high-voltage switchgear for grounding protection.

Product Specifications

No.	Name	Unit	Data
1	Rated Voltage	kV	12
2	Rated Frequency	Hz	50/60
3	Rated Short-Time Withstand Current	kA	31.5/40
4	Rated Withstand Current (Peak)	kA	80
5	Rated Duration of Short-Circuit	s	4
6	Rated Power Frequency Withstand Voltage	kV	42
7	Rated Lightning Impulse Withstand Voltage	kV	75
8	Mechanical Endurance	Times	5000
9	Post-Opening Contact Gap	mm	≥125

Product Advantages

JN15-12 indoor grounding switch has many advantages:

Compact size, compatible with various phase spacing.

Simple and compact structure, light weight.

Flexible operation, easy installation.

Excellent thermal stability, capable of stable operation for 4 seconds.

Closing and opening speeds are independent of manual operation.

Standard configuration is manual operation; an electric operation option is also available.

Product Applications

JN15-12 indoor grounding switch is used in power equipment grounding cabinets to protect maintenance personnel during repairs.

Product Outline Drawing

JN15-12 Indoor Grounding Switch manufacturer

Remarks:

1. If the distance between phases is 150mm, it is necessary to increase the insulated partition between phases;

2. The width of fixed contact is 40mm when the distance between phases is ≤180mm; the width of fixed contact is 60mm when the distance between phases is >180mm;

3. The grounding switch provides output shafts in two directions; the main shaft extends to the left for left operation, and extends to the right for right operation.
