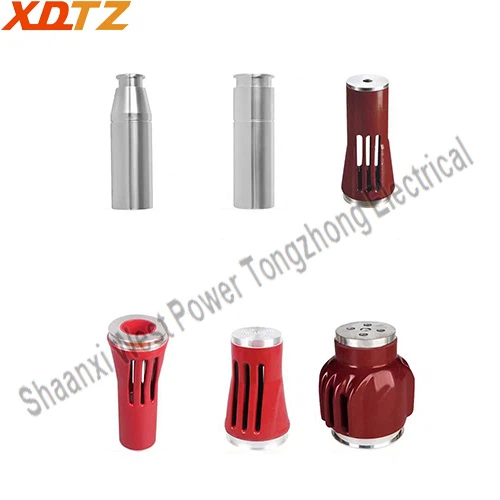

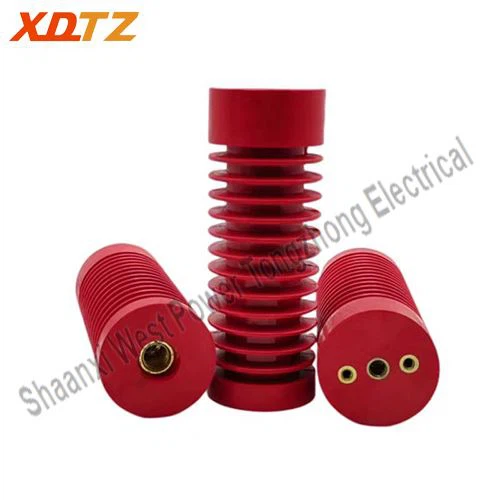

24kV insulator is a critical component used to separate conductors at different potentials or between conductors and grounded elements. It is designed to withstand voltage and mechanical stress. The primary types include post insulators and composite insulators.

Product Specifications

No.	Item	Unit	Date
1	Rated Voltage	kV	24
2	Operating Environment		-40℃～40℃
3	Power Frequency Withstand Voltage	kV/ min	65
4	Partial Discharge Limit Value	pc	≤5
5	Material		Epoxy Resin

Product Advantages

24kV insulator offers several key advantages:

Outstanding Insulation

Effectively isolates conductors with differing potentials, preventing current leakage and short circuits, ensuring the safe operation of your electrical system.

High Voltage Endurance

Capable of withstanding higher voltage levels, making it versatile for various power transmission and distribution needs.

Low Dielectric Loss

It can reduces energy loss, contributing to overall system efficiency.

Stable Performance

Remains stable under various environmental conditions, resisting deformation and breakage.

Corrosion Resistance

It has a certain tolerance to chemical substances such as acids, alkalis, and salts, and is not easily corroded.

Anti-Pollution Characteristics

Its smooth surface resists dirt accumulation, maintaining its insulation properties even in polluted environments.

Product Applications

Substations

In substations, post insulators are used to support the conductive parts of electrical devices such as busbars, isolation switch, and circuit breakers to ensure the safe operation of the equipment.

Overhead Lines

Used to support overhead conductors to maintain a sufficient insulation distance from grounded parts such as poles and towers.

Power Plants

In power plants, post insulators are used at the outlets of generators, transformers, and other equipment to provide insulation and support.
