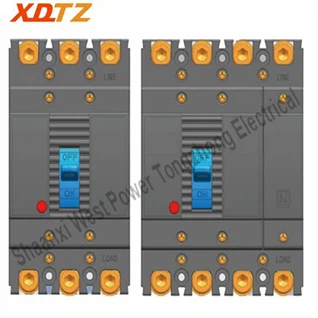

Electronic Circuit Breaker

Electronic Circuit Breaker

1.Rated working voltage: 400V
2.Rated working voltage 630A
3.Installation method: vertical installation, horizontal installation;
4.Applicable environment: below 2000 meters above sea level, stable surrounding medium -5 to +40°;
5.Product compliance standards: IEC60947-2, GB14048.2 and other standards;
Send Inquiry
Product Introduction

Electronic Circuit Breaker with rated insulation voltage up to 690V (630 frame 1000V, suitable for AC 50Hz), rated working voltage 400V, and rated working current up to 630A for distribution network circuits. They are used to distribute electric energy and protect lines and power equipment from losses caused by overload, short circuit, undervoltage and other faults. They can also be used as infrequent starting and overload/short circuit, undervoltage protection for motors. This product has the characteristics of small size, high breaking rate, short arcing, etc. It can be installed vertically or horizontally. The difference from KETKM6 products is that this product is electronic tripping.



Product Specifications

Frame current Imn (A)

160

250

400

630

Type

160M

160H

250M

250H

400H

630H

Serious

3,4

3,4

3,4

Rate current In(A)

12~32,5~63,40~100,63~160

100~250

200~400

400~630

Rated operational voltage Ue(V)



400

400



Rated insulation voltage Ui(V)

AC1000

AC1000



rated impulse withstand voltage Uimp (kV)

8

8



Rated ultimate short-circuit breaking capacity Icu(kA)

35

65

50

70

50

85

Rated breaking capatity of running short circuit

20

50

35

50

25

50

Rated short time withstand current 1s Icw kA

-

-

-

-

5

8

Use classes

A

Operation cycle times

Electrify on

6000

3000

2000

1500

No electricity off

9000

7000

4000

4000



Outline Dimension(mm)

a-b-c-caproduct-103-63

Level 3

90-155-77-103

105-165-76-104

147-257-103-155

Level 4

120-155-77-103

140-165-76-104

184-257-103-155

Electric operating mechanism

Manual operating mechanism

Short delay overcurrent protection action characteristics:

Electronic Circuit Breaker price

Knob operation diagram

Electronic Circuit Breaker quotation



Product Advantages

Electronic Circuit Breaker has many advantages:







Suppress current rise











Modular accessories, you can choose and expand functions according to your needs;









Removable contact device









Tolerant to humid air,Reliable work in earthquake conditions

product application



Electronic Circuit Breaker is used to rated insulation voltage up to 690V (630 frame 1000V, suitable for AC 50Hz), rated working voltage 400V, and rated working current up to 630A  in power distribution network circuits.

  Product outline drawing

Electronic Circuit Breaker supplier

Electronic Circuit Breaker factory
