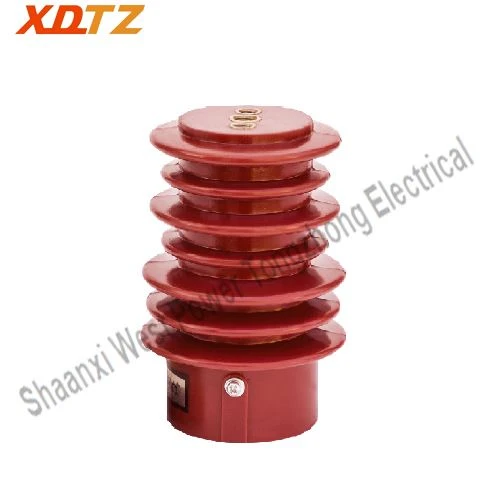

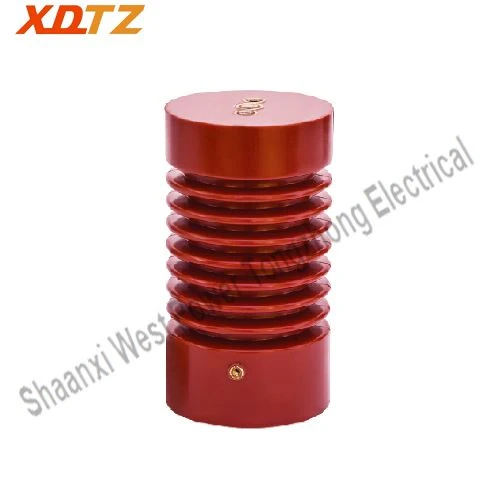

12kV sensor is suitable for three-phase AC systems power stations and substation distribution equipment with a rated voltage of 12kV and a frequency of 50~60Hz. It is used to allow conductive parts to pass through partitions, walls, or other grounded objects, providing insulation support and establishing a secure connection with external conductors (busbars).

Product Specifications

No.	Item	Unit	Date
1	Rated Voltage	kV	12
2	Rated Current	A	630/1250/1600/2000/2500/3150/4000
3	Power Frequency Withstand Voltage	kV/ min	48
4	Partial Discharge Limit Value	pc	≤5
5	Material		Epoxy Resin

Product Advantages

Real-time Monitoring

Offers continuous monitoring of insulators, identifying potential issues early. It tracks parameters like insulator temperature and leakage current, issuing alerts for any abnormal changes, enabling quick preventive action.

High Accuracy

Delivers precise measurements of various parameters. Optical sensors detect surface cracks and damage, while electrical sensors measure leakage current to assess insulation performance. Multi-sensor fusion technology enhances accuracy and reliability.

Non-contact Monitoring

Enables monitoring without touching the insulator, preventing damage. This is especially useful for high-voltage transmission lines, where monitoring can be done without interrupting power flow.

Remote Monitoring

Integrates with communication technology to allow real-time monitoring from a control center. This improves efficiency, reduces labor, and saves time.

Data Analysis and Prediction

Processes collected data to evaluate and forecast insulator conditions. Historical data is used to predict the lifespan and failure probability, aiding in maintenance and replacement planning.

Product Applications

Widely used in power systems, including high voltage transmission lines and substations, 12kV sensor enhances system reliability and safety by continuously monitoring insulator status, reducing the risk of outages due to insulator failures.
