During the opening operation of a circuit breaker, an arc is generated between the contacts. Especially when interrupting high fault currents, the arc can reach extremely high temperatures and release significant amounts of energy. If it cannot be extinguished quickly, it may cause excessive contact wear and affect equipment safety. The ability of vacuum circuit breakers to effectively control the arc comes from their unique vacuum environment and contact design. The vacuum environment limits the conditions required for arc conduction, while specially designed contact materials and structures help control the arc and achieve rapid extinction.
1
The Vacuum Environment Limits Arc Sustaining Conditions
The vacuum interrupter maintains a high vacuum level with very few gas molecules inside. When the contacts separate, the arc is mainly sustained by metal vapor generated from the contact material rather than by a large amount of gaseous medium as in air circuit breakers.
As the current approaches its natural zero point, the metal vapor rapidly decreases and the arc channel disappears, allowing the arc to be effectively extinguished.
2
Contact Materials and Structure Control Arc Energy
The contact material of a vacuum interrupter has a significant influence on its interruption performance. Special contact alloys can control the generation of metal vapor during interruption while providing a balance between electrical conductivity, resistance to contact welding, and arc erosion resistance.
At the same time, the contact structure affects the distribution and movement of the arc, helping spread the arc energy more evenly and reducing localized overheating and contact erosion.
3
Rapid Insulation Recovery After Current Zero
Another key advantage of vacuum circuit breakers is their rapid recovery of insulation strength after current zero. Since charged particles inside the vacuum medium quickly disappear, the contact gap can rapidly regain a high level of dielectric strength.
As a result, vacuum circuit breakers can complete arc extinction and insulation recovery within a very short period, providing reliable protection for the safe interruption of high fault currents.
It is the combination of the vacuum environment, specially designed contact materials, and optimized structural design that enables vacuum circuit breakers to effectively control arc energy, achieve rapid arc extinction, and provide reliable interruption performance. This makes them widely used in medium voltage distribution systems, industrial power systems, and substations.

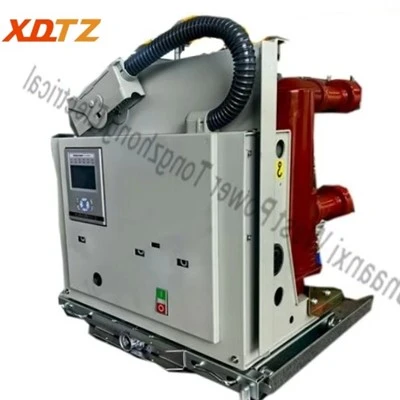

If you want to know more about VTZ-12 Series Indoor Phase-selective Switching Intelligent Vacuum Circuit Breaker please feel free to contact us at any time.
