At the heart of vacuum circuit breaker protection, the electronic trip unit and the thermal-magnetic trip unit represent two distinct technological paths. Regarding accuracy and reliability, the answer is not a simple either‑or proposition-each has its own strengths.

In terms of accuracy, the electronic trip unit holds a clear advantage. It uses a microprocessor to sample current waveforms, enabling precise setting of multi‑stage protection curves, including long‑time delay, short‑time delay, instantaneous, and ground‑fault protection. Its operating error can be controlled within ±5%, and it is unaffected by ambient temperature variations. In contrast, the thermal‑magnetic trip unit relies on the thermal deflection of a bimetal and the instantaneous action of an electromagnet. Its trip threshold dispersion is relatively large (typically ±10% to ±15%), and the thermal element is susceptible to ambient temperature rise, making its accuracy inherently limited.

In terms of reliability, the thermal‑magnetic trip unit takes the lead. Its purely mechanical structure contains no electronic components, requires no auxiliary power supply, and exhibits strong resistance to electromagnetic interference and surge transients. In environments with high humidity, dust, or severe vibration, its failure rate is extremely low, and it is virtually maintenance‑free over its service life. Although the electronic trip unit features self‑diagnostic functions, its power supply module, capacitors, and sampling circuits are subject to ageing risks. Once power is lost or the software is disturbed, the protection function may be completely lost.

For accuracy, choose electronic,for reliability, choose thermal‑magnetic. Modern intelligent power distribution prioritises selective coordination and communication capabilities, making electronic trip units the mainstream choice. However, in mines, chemical plants, and other locations where continuity of power supply is extremely critical and environmental conditions are harsh, the thermal‑magnetic trip unit remains an irreplaceable "last line of defence."
In engineering selection, a trade‑off must be made between measurement precision and operational robustness, rather than simply judging which is superior.

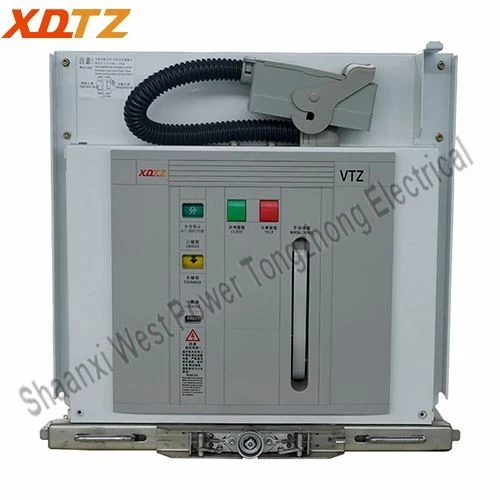

Are you interested in our main product is VTZ-12 vacuum circuit breaker .It can alterlative ABB VD4. If yes, please contact us.
