Thanks for the East-south Asia customer's trust and support.
The customer wanted to replace the old contact box and fixed contact of 24kV indoor vacuum circuit breaker. When we know clearly the customer's requirement, we provide the drawings for contact box and fixed contact to confirm by the customer.
After got his confirmation and checked the shipping cost, we offer the reasonable price for the customer. He compared with other supplier's price and service a few days, finally he choosed us.
Now, let me introduce the main product contact box.
Products Description
The 24kV contact box is an insulating component molded by epoxy resin APG pressure gel molding process. It is mainly used in trolley-type switchgear and undertakes the functions of electrical connection and insulation isolation.It is applicable to high-voltage switchgear systems with a rated voltage of 24kV and a current range of 630A to 4000A.
Products Specification
|
S.N |
Item |
Data |
|
1 |
Rated voltage |
24kV |
|
2 |
Rated current |
630/1250/1600/2000/2500/3150A |
|
3 |
Frequency withstand voltage |
42kV/5min |
|
4 |
Rated lightning impulse withstand voltage |
75kV peak value(Contact to ground) |
|
5 |
Partial discharge |
≤5pC(1.1xUn) |
|
6 |
Temperature rise test |
Long-term operation end temperature rise ≤ 65K (in line with GB/T 11022 standard) |
|
7 |
Bending strength |
≥150MPa(Epoxy resin material) |
|
8 |
Insulation resistance |
≥109Ω(normal),≥108Ω(After being wet) |
|
9 |
Creepage distance |
≥300mm(Standard type),≥400mm(Enhanced) |
|
10 |
Tensile strength |
≥80MPa(Contact connection part) |
|
11 |
operating temperature |
-10℃~+40℃(normal),-25℃~+40℃(Low temperature type) |
|
12 |
relative humidity |
≤95%(No condensation at 20℃) |
|
13 |
altitude |
≤1000m(normal),2000m(Plateau type optional) |
|
14 |
pollution level |
Ⅲ level(Insulation design needs to be strengthened) |
|
15 |
Protection level |
IP4X |
|
16 |
Standard certification |
GB/T 11022(General technical requirements for high-voltage switchgear) |
|
DL/T 404(Technical conditions for ordering indoor AC high-voltage switchgear) |
||
|
IEC 62271-200(General specification for high-voltage switchgear) |
Products advantage
24kV contact box has many advantages.
- High insulation and reliability
- Optimized environmental adaptability
- Safety protection design
- Maintenance-free design
- Comprehensive model coverage
Customer review

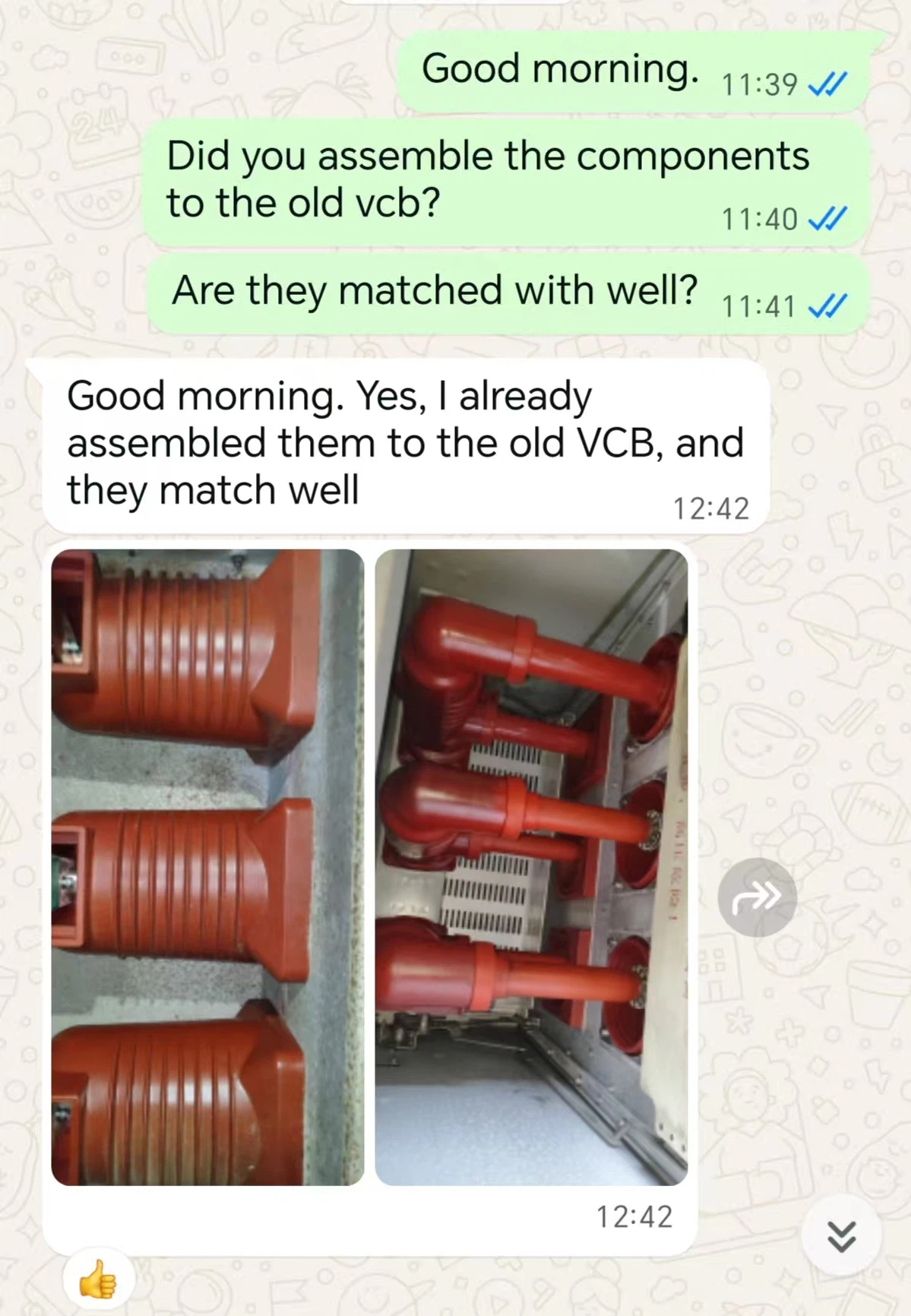

When the customer received the 24kV contact box, I asked that how about the using.
If you have any inquiry for vacuum circuit breaker and the assemblies, please kindly contact us at any time.
We have a professional technical team and a foreign sales team to service for you.
