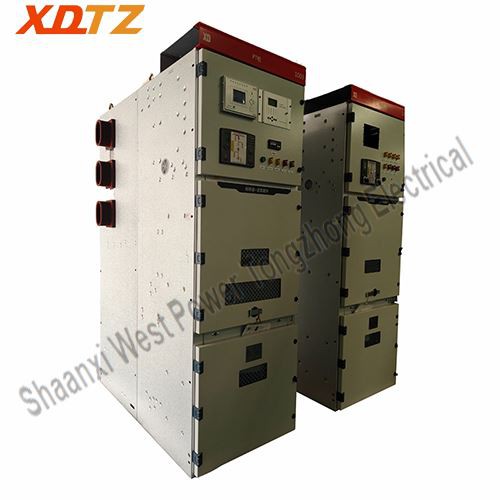

KYN28-12 Indoor Armored Metal-Enclosed Switch Equipment

1.Perfect structure: the cabinet is fully assembled, aluminum-zinc-plated multiple folding process structure;

2.Extremely safe: the cabinet is divided into four independent compartments as a whole, which is safe and reasonable;

3.Convenient and concise maintenance: the cabinet is equipped with a center-mounted handcart circuit breaker, which is convenient for overhaul and maintenance;

4.Complete five-proof interlock.

a.The handcart can be moved from the test/isolating position to the operating position when the circuit breaker and the earthing switch are in the open position. Reverse movement is also possible in this tripping condition (mechanical interlocking).

b.The circuit breaker can only be closed (mechanical and electrical interlocking) when the handcart is already fully in the test or operating position.

c.When the handcart is in the test or running position and there is no control voltage, the circuit breaker cannot be closed and can only be manually opened (electrical interlocking).

d.When the hand truck is in the run position, the control wire plug is locked and cannot be unplugged.

e.The earth switch can only be closed when the handcart is in the test/isolation position or removed (mechanical interlocking).

f.The handcart cannot be moved from the test/isolation position to the operating position when the earth switch is closed (mechanical interlocking).

g.Additional interlocking devices, such as latching solenoids, can be fitted to the trolley and/or earth switch actuating mechanism.

5.KYN28-12 indoor armored metal-enclosed switch equipment widely range of application: the serialized products cover a wide range, from rated current 630A to rated current 5000A, and from rated breaking current 20KA to 50kA; cover all environments within 4500 meters above sea level; cover the use environment of -40℃~40℃; the circuit breaker in the cabinet can be equipped with domestic and foreign withdrawable vacuum circuit breakers;

6.Support intelligent customization：

a.Wireless temperature intelligent monitoring program with self-powered design can be added, safe and maintenance-free.

b.Mechanical characteristics monitoring program, when monitoring the circuit breaker operation data, hidden problems early detection, early solution;

c.Motorized entry solution for remote operation to ensure personal safety.

d.Local inspection allows real-time detection of original deterioration.

Power plant

Industrial field (chemical, steel, petroleum, coal, etc.)

Power grid system

Power infrastructure
