Analysis of the most serious faults of high-voltage vacuum circuit breakers

The most serious faults of high-voltage vacuum circuit breakers include short circuit caused by insulation breakdown and refusal to act or false action caused by mechanical failure, which require regular maintenance, insulation strengthening and design optimization to prevent.

In the power system, high-voltage vacuum circuit breaker as a key equipment, bears the important responsibility of protecting the safety of the power grid and isolating the fault area. However, with the growth of operation time and the influence of environmental factors, vacuum circuit breakers are also facing various failure challenges. Among them, the most serious failure is insulation breakdown and mechanical failure.

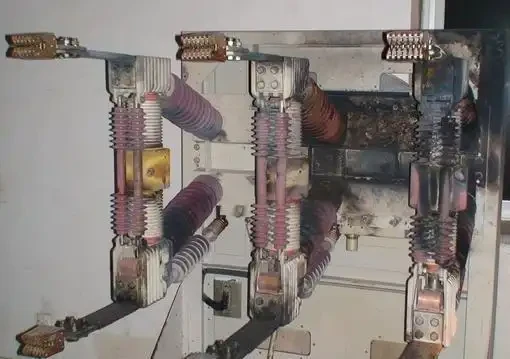

Insulation breakdown is one of the most deadly faults in high-voltage vacuum circuit breakers. When the vacuum circuit breaker internal or external insulation material due to aging, moisture, pollution and other reasons lead to insulation performance decline, once the system overvoltage or operational shock, may trigger insulation breakdown, resulting in phase-to-phase or phase-to-ground short circuit. This will not only damage the circuit breaker itself, but may also cause larger grid accidents, such as equipment burnout, power outages, etc.

In order to prevent insulation breakdown, the power sector needs to conduct regular insulation tests on vacuum circuit breakers to detect and deal with insulation defects in a timely manner. At the same time, optimize the circuit breaker design, improve the anti-aging of insulation materials, filth resistance, is also an effective means of reducing insulation breakdown.

Mechanical failure is another high-voltage vacuum circuit breaker can not be ignored. Circuit breaker opening and closing operations rely on sophisticated mechanical systems, including transmission mechanisms, actuators, etc.. If these parts are worn, jammed, deformed and other problems, it may lead to circuit breaker refusal or false action. Refusal to act means that when a fault occurs, the circuit cannot be cut off in time, which may expand the scope of the accident; false action may cut off normal circuits in the absence of faults, affecting the reliability of power supply.

In order to reduce the occurrence of mechanical failure, the power sector needs to strengthen the routine maintenance of vacuum circuit breakers, regularly check the operating status of mechanical parts, and timely replacement of badly worn parts. In addition, optimizing the design of the vacuum circuit breaker actuator mechanism to improve its reliability and stability is also an important measure to prevent mechanical failure.

In summary

The insulation breakdown and mechanical failure of high-voltage vacuum circuit breakers are two major problems that must be highly concerned in the operation of the power system. By strengthening the equipment maintenance, optimizing the design, improving the management level and other measures, we can effectively reduce the occurrence of these failures to ensure the safe and stable operation of the power grid.
