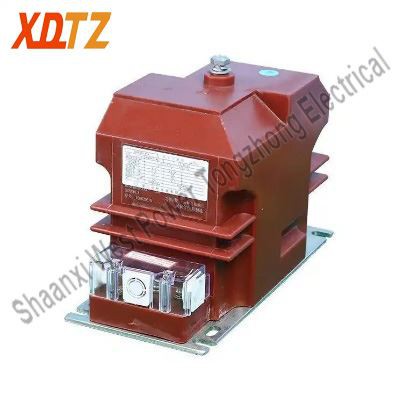

10kV Potential Transformer
10kV Potential Transformer (PT or VT) is a key device used for voltage measurement, energy metering, relay protection and system monitoring in power systems. Its function is to convert the voltage on the high voltage side (10kV) into a safe voltage on the low voltage side (standard value such as 100V or 100/V) for use by instruments, protection devices and control systems.
We can also provide current transformer and transformer ,welcome you inquiry .
Product Specification
Main technical parameters
|
S.N |
Parameter name |
Parameters |
Parameter Value |
|
1 |
Voltage ratio (common ratio form) |
Single Phase |
10000/100 |
|
With residual winding |
10000/ 10000/ |
||
|
Secondary rated voltage |
Typically 100V or 57.7V (applicable to systems with non-effectively grounded neutral point) |
||
|
|
Accuracy |
Measurement Grade |
Level 0.2 (high-precision measurement), Level 0.5 (general measurement), Level 1 (ordinary measurement) |
|
Protection level |
3P, 6P (for relay protection) |
||
|
3 |
Conditions of Use |
Environmental requirements |
Applicable to indoor environment with altitude ≤3000m, temperature -5℃～+40℃, humidity ≤85% (20℃); some models can be adapted to outdoor or highly polluted environment |
|
Rated frequency |
50Hz or 60Hz |
||
|
4 |
Rated output capacity |
Standard capacities include 30VA, 50VA, 100VA, etc., which can be selected based on the secondary load requirements. |
|
|
5 |
Insulation properties |
Power frequency withstand voltage |
42kV (1 minute) |
|
Lightning impulse withstand voltage |
75kV |
||
|
Creepage distance |
Meet the requirements of Class II pollution level |
||
|
6 |
Wiring method |
Single-phase wiring |
Such as JDZ-10-10 10/1kV direct wiring |
|
Three-phase group |
V-V connection method (two transformers form three-phase measurement) |
/100/
/100/
或
/100/
/100/
/100/

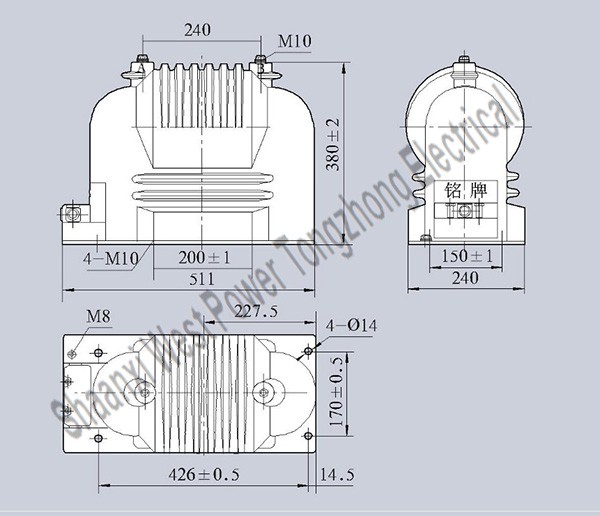

Products Outline Drawing
