In recent years, with the continuous growth of my country's electricity demand and the rapid increase in new energy installed capacity, the generator circuit breaker (GCB), as a core piece of equipment ensuring the safe and reliable operation of generator sets, is moving from behind the scenes to the forefront. From nuclear power plants to pumped storage power plants, from large thermal power plants to gas-fired peak-shaving units, this key device, hailed as the "safety valve" of the power system, is safeguarding the safe output of every kilowatt-hour of electricity with its superior performance.
Precise "Disconnection" and "Connection," Building a Safety Barrier for Generator Sets
The generator circuit breaker is installed between the generator and the transformer. Its core function is to precisely disconnect the fault current within milliseconds, protecting the generator and transformer from the impact of short-circuit faults. During generator set operation, when core equipment such as the generator, turbine, or boiler fails, the GCB can quickly trip, isolating the fault point and preventing the accident from escalating. At the same time, the GCB can also significantly reduce the investment and operating costs of the power plant system and improve the availability of the units.
Compared to conventional distribution circuit breakers, generator circuit breakers (GCBs) face far more demanding operating environments. The short-circuit current at the generator outlet not only has a massive amplitude but also contains up to 110% DC component, placing extremely high demands on the arc-extinguishing capability and mechanical performance of the circuit breaker. It is precisely because of its advanced design concepts and reliable arc-extinguishing technology that GCBs have become an indispensable core component of large-capacity generator sets.
All-Scenario Protection, Covering Diverse Application Scenarios
With its superior performance, GCBs have played an irreplaceable role in multiple power application fields, forming a "all-scenario protection" framework.
Nuclear Power Plants: Ultimate Reliability, Building the Foundation of Safety. In nuclear power plants, a field with the most stringent safety requirements, GCBs play a crucial role.
Pumped Storage Power Stations: Second-Level Response, Solving the Problem of Frequent Start-Stop Operations. Pumped storage power stations have the operational characteristics of high-frequency switching between power generation and pumping, placing stringent requirements on the supporting switchgear for rapid response and high reliability.
Gas-fired Power Generation: High Temperature and High Load, Safeguarding Efficient Peak Shaving. Gas turbine units, characterized by rapid start-up and shutdown and frequent peak shaving, place higher demands on the stability of generator circuit breakers under high-temperature and high-load conditions.
Breakthroughs in Domestic Production: Significant Achievements
For a long time, the core technology of large-capacity generator circuit breakers was monopolized by a few multinational corporations, resulting not only in high procurement costs but also supply chain security risks. To solve this bottleneck problem, my country's power equipment enterprises have continuously tackled key challenges and achieved a series of major breakthroughs.
Significant Economic Benefits and Contribution to Achieving "Dual Carbon" Goals
The installation of generator circuit breakers brings not only safety benefits but also considerable economic benefits. During unit startup, only the GCB needs to be disconnected to supply power to the plant, eliminating the need to introduce mains power through the starting transformer. Normal start-up and shutdown of the unit also do not require switching to the plant's auxiliary power supply, significantly improving its reliability. When a fault occurs within the generator outlet circuit breaker, only the GCB needs to be tripped, without tripping the high-voltage side switch of the main transformer, resulting in less impact on the system grid structure. It also facilitates maintenance and commissioning, shortens fault recovery time, and saves a significant amount of operating costs annually.
From an environmental perspective, the widespread application of vacuum arc-extinguishing technology effectively contributes to achieving the "dual carbon" goals. Vacuum circuit breakers are developed based on the characteristic of rapid arc extinguishing under vacuum conditions. Compared with traditional sulfur hexafluoride circuit breakers, they offer advantages such as safety, environmental friendliness, rapid interruption, and maintenance-free operation.
Broad Prospects, Accelerating Towards Intelligentization
Looking to the future, with the deepening of my country's "dual carbon" strategy and the accelerated construction of new power systems, the intelligent upgrading of power equipment has become an inevitable trend. Generator circuit breakers are evolving towards intelligence and digitalization. Through the deep integration of sensors, communication technologies, and control algorithms, real-time monitoring and early warning of key equipment parameters can be achieved, further improving the safety and reliability of the power system. Market research institutions predict that the global generator circuit breaker market size reached $4.4 billion in 2025 and is expected to increase to $6.3 billion by 2035.
Driven by both technological breakthroughs and market forces, my country's generator circuit breaker industry has entered a period of accelerated development, moving from "following" to "leading." As more major equipment achieves independent control, this "national strategic asset" will undoubtedly play an even more important role in safeguarding power system security and ensuring national energy security.
Shaanxi west power Tongzhong Electric Co., Ltd. successfully developed GVCB

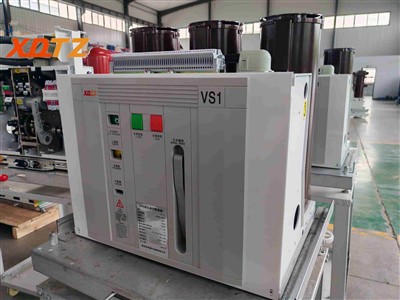

In response to national policies and trends, Shaanxi west power Tongzhong Electric Co., Ltd. successfully developed the VTZ-12F Generator Output-Specific Vacuum Circuit Breaker in October 2025 and the VTZ-15/T5000-63 Indoor High-voltage Generator Circuit Breaker in April 2026. These two products were customized for Russian customers, and the feedback from the customers upon receiving the goods was excellent.
