The expansion potential of vacuum circuit breakers in high-voltage power systems mainly lies in three aspects: technological breakthroughs, environmentally friendly alternatives, and global application trends. The following is a comprehensive analysis:
1. Environmental Alternatives Drive the Development of High-Voltage Vacuum Circuit Breakers
The Environmental Issues of SF6 Gas: Traditional high-voltage circuit breakers rely on SF6 gas as an insulation and arc-quenching medium, but its greenhouse effect is 23,900 times that of CO2, and its atmospheric lifetime is as long as 3,200 years. It has been listed as a restricted gas under the Kyoto Protocol. Vacuum circuit breakers, because they do not produce greenhouse gases, have become an ideal alternative to SF6, and are receiving even more attention under the "dual carbon" target (carbon dioxide, carbon sequestration, and carbon emissions).
Policy and market demand: Globally (such as in the EU and China), the use of SF6 is being gradually restricted, driving the development of vacuum circuit breakers towards higher voltage levels. For example, the 252 kV single-break vacuum circuit breaker developed by China Southern Power Grid can reduce CO2 equivalent emissions by 3 tons per year, has passed type testing, and is planned for industrialization.
2. Technological Breakthroughs and High-Voltage Application Progress
Single-Break Voltage Increase: Traditional vacuum circuit breakers are limited to the medium-voltage range (12-40.5 kV), but in recent years, through technologies such as longitudinal magnetic field contacts and optimized insulation design, the single-break voltage has been increased to 252 kV (e.g., the world's first 252 kV vacuum circuit breaker jointly developed by China Pinggao Group and Guangzhou Power Supply Bureau), and exploration is underway towards the 550 kV ultra-high voltage level.
Multi-Break Series Technology: For ultra-high voltage (e.g., 363 kV and above), using multi-break series (e.g., six 126 kV arc-extinguishing chambers in series to achieve 750 kV) is a feasible approach, but technical challenges such as synchronous operation and equalizing capacitors need to be addressed.
Heat dissipation and rated current enhancement: Vacuum interrupters rely on heat conduction for heat dissipation. Under high voltage, it is necessary to optimize the contact structure (such as 2/3 turn longitudinal magnetic contacts) or add heat sinks to enhance the rated current (such as 2,500 A for 126 kV circuit breakers).
3.Current Status and Future Directions of Global Applications
International Application Cases:
Japan: 3,350 72-252 kV vacuum circuit breakers have been deployed, with the highest voltage reaching 204 kV (0.03% of the total).
Europe: Siemens has launched a 72.5 kV nitrogen-insulated vacuum circuit breaker to replace SF6 equipment.
China: 126 kV vacuum circuit breakers have been in operation since 2005; 252 kV products have been domestically produced, and there are plans to extend this to 550 kV.
Future Trends:
Environmentally Friendly GIS Switchgear: Combining vacuum interrupters with SF6 replacement gases (such as nitrogen) to separate insulation and breaking functions.
Intelligentization and Integration: For example, Schneider Electric's EvoPacT HVX intelligent circuit breaker, combining digital modules and AI algorithms, improves operation and maintenance efficiency.
4.Challenges and Bottlenecks
Insulation and breaking capacity: The vacuum insulation level tends to saturate as the opening distance increases, requiring optimized design through multiple shielding covers or ceramic housings.

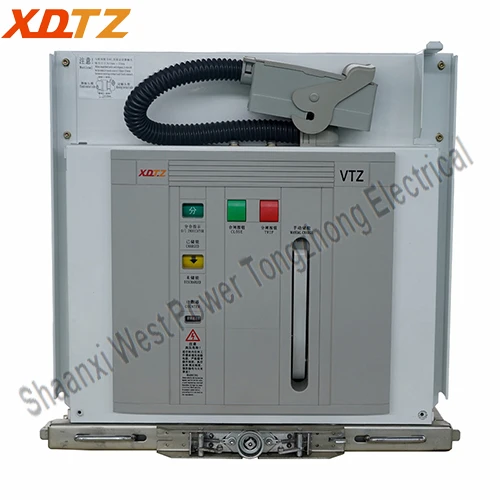

Cost and reliability: High-voltage VTZ-12 vacuum circuit breaker have high manufacturing costs, and the synchronous control technology for multiple breaks in series still needs to be verified.
In conclusion
Vacuum circuit breakers have broad application prospects in high-voltage systems, driven primarily by environmental policies and technological innovation. Future development requires further breakthroughs in technologies such as ultra-high voltage insulation, high-current breaking capacity, and multi-break coordination, while simultaneously promoting industrialization to reduce costs, ultimately achieving full-voltage-level replacement of SF6 equipment.
