Product Introduction

GW4-126 Outdoor High Voltage Isolating Switch is a 3-phase AC high-voltage electrical appliance, used in power systems with a voltage of 40.5, for no-load switching in high-voltage lines, and for electrical isolation between high-voltage busbars, circuit breakers and other electrical equipment under maintenance and energized high-voltage lines.

Product Structure

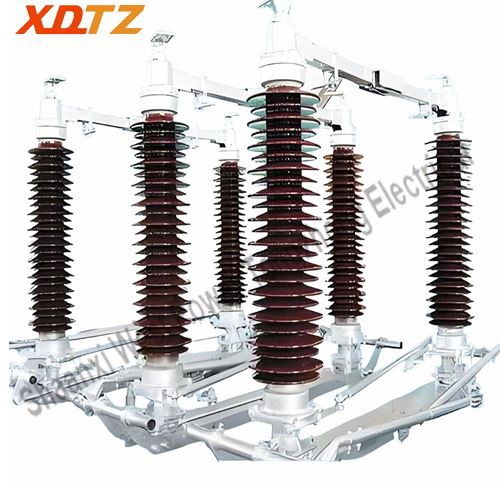

GW4-126 Outdoor High Voltage Isolating Switch is double-column horizontal rotation. It includes 3 single poles, each pole is a double-column structure, mainly composed of a base and a support insulator. Each pole consists of 2 insulators, which are respectively installed on the bearing seats at both ends and connected by cross-links. It can rotate horizontally within a range of 90°. The conductive part is divided into two halves, which are respectively fixed on the insulator pillars, and the contact is in the middle of the two porcelain pillars. When the mechanism is in motion, one of the pillar insulators rotates 90°, and the other insulating pillar also rotates 90° at the same time due to the connecting rod transmission, and the switch is opened and closed on the same side. In order to ensure the correct operation sequence between the disconnector and the grounding switch, reliable mechanical and electrical interlocking devices are installed on the product and mechanism.

Product type

GW4-126 Outdoor High Voltage Isolating Switch have 3 types :

1. Ordinary type, pollution-resistant type, plateau type

2. Electric operation, manual operation

3. Ungrounded, single grounded, double groundedis

Specification Sheet

No.	Name	Unit	Data
1	Rated Voltage	kV	126
2	Rated Frequency	Hz	50
3	Rated Current	A	630-2500
4	Rated Short-Circuit Breaking Current	kA	31.5/40/ 50
5	Rated Withstand Current (Peak)	kA	80/100/125
6	Rated Power Frequency Withstand Voltage	kV	230(Across the contact gaps) / 265(To Ground)
7	Rated horizontal pulling force of terminals	N	1000
8	Monopole weight	KG	250

Operating environment

Altitude: Altitude ≤1000M, plateau type ≤4000M

Monthly average humidity: ≤90%

Maximum wind speed: ≤35M/s (equivalent to 700Pa on the surface of a cylinder)

Pollution level: Level III.Level IV

Ambient temperature: -35℃-40℃

Maximum daily temperature difference: 25K

Seismic fortification intensity: 8 degrees

Maximum ice thickness: 10mm

Maximum sunshine intensity: 1000W/m²

Product Advantages

GW4-126 Outdoor High Voltage Isolating Switch has many advantages:

Simple structure

Stable performance, easy installation and maintenance.

Strong corrosion resistance

The overall steel parts are hot-dip galvanized and have strong corrosion resistance.

Safe and reliable

It adopts maintenance-free bearing seat and reliable interlocking and limit devices, which is safe and reliable.

No phenomenon of excessive temperature of the outlet line after long-term use

The conductive switch transition link adopts a soft connection structure, and there is no phenomenon of excessive temperature of the outlet line after long-term use.

Product Applications

GW4-126 Outdoor High Voltage Isolating Switch has many applications:

Power systems with a voltage of 40.5,

For no-load switching in high-voltage lines.

For electrical isolation between high-voltage busbars, circuit breakers and other electrical equipment under maintenance and energized high-voltage lines.

Product Outline Drawing

GW4-126 Outdoor High Voltage Isolating Switch price
